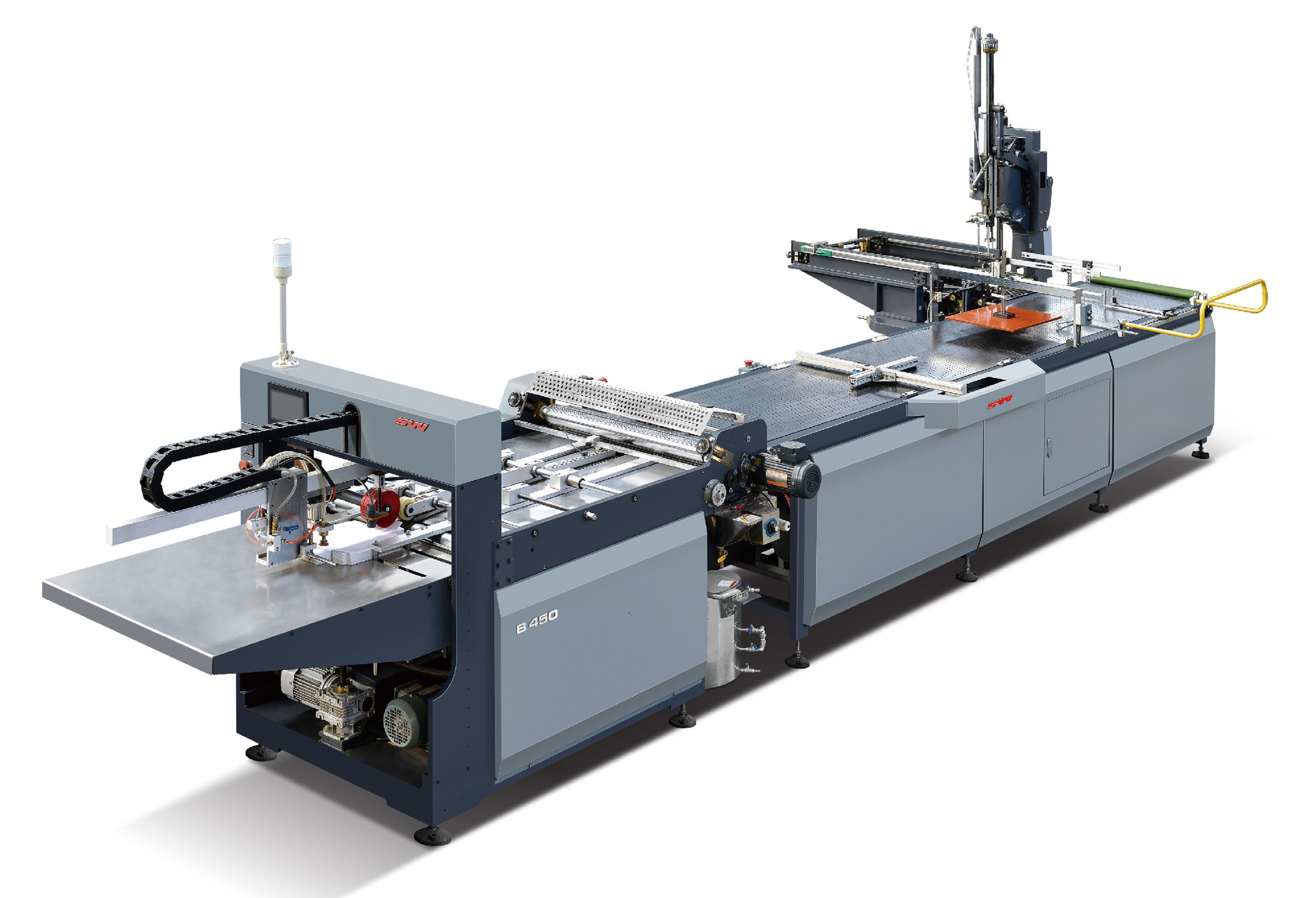

B450 SEMI AUTOMATIC RIGID BOX MAKER

Technical parameter:



ModelBD460BBD450
Paper sizeMin 100×200mmMin 100×200mm

Max 580×800mmMax 580×800mm
Paper thickness100-200g/m2100-200g/m2
Cardboard thickness1-3mm1-3mm
Box sizeMin 50×100×15mm50×100×15mm

Max 320×100×120mm320×420×70mm
Edge folding depthRmax 70mmRmax 30mm

Rmin 10mmRmin 10mm
Size of folding earRmax 125mm

Rmin 10mm
Speed10-20 boxes/min10-20 boxes/min
Power10kw/380v/3phase9kw/380v/3phase
Heater power7.8kw7.8kw
Air supply10L/min 0.6Mpa5L/min 0.6Mpa
Weight 3500kg3600kg

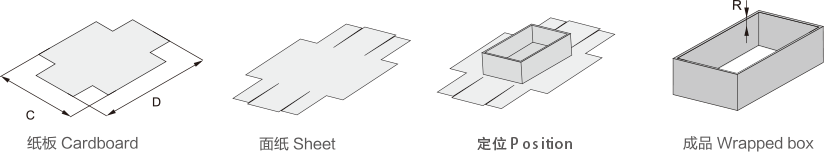

Production flow:

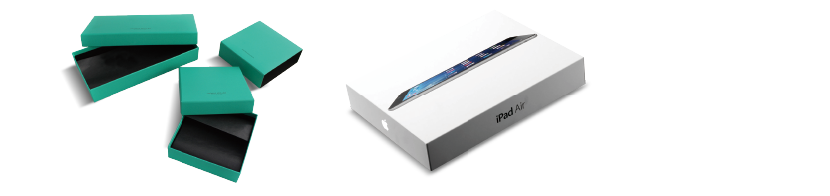

Sample:
