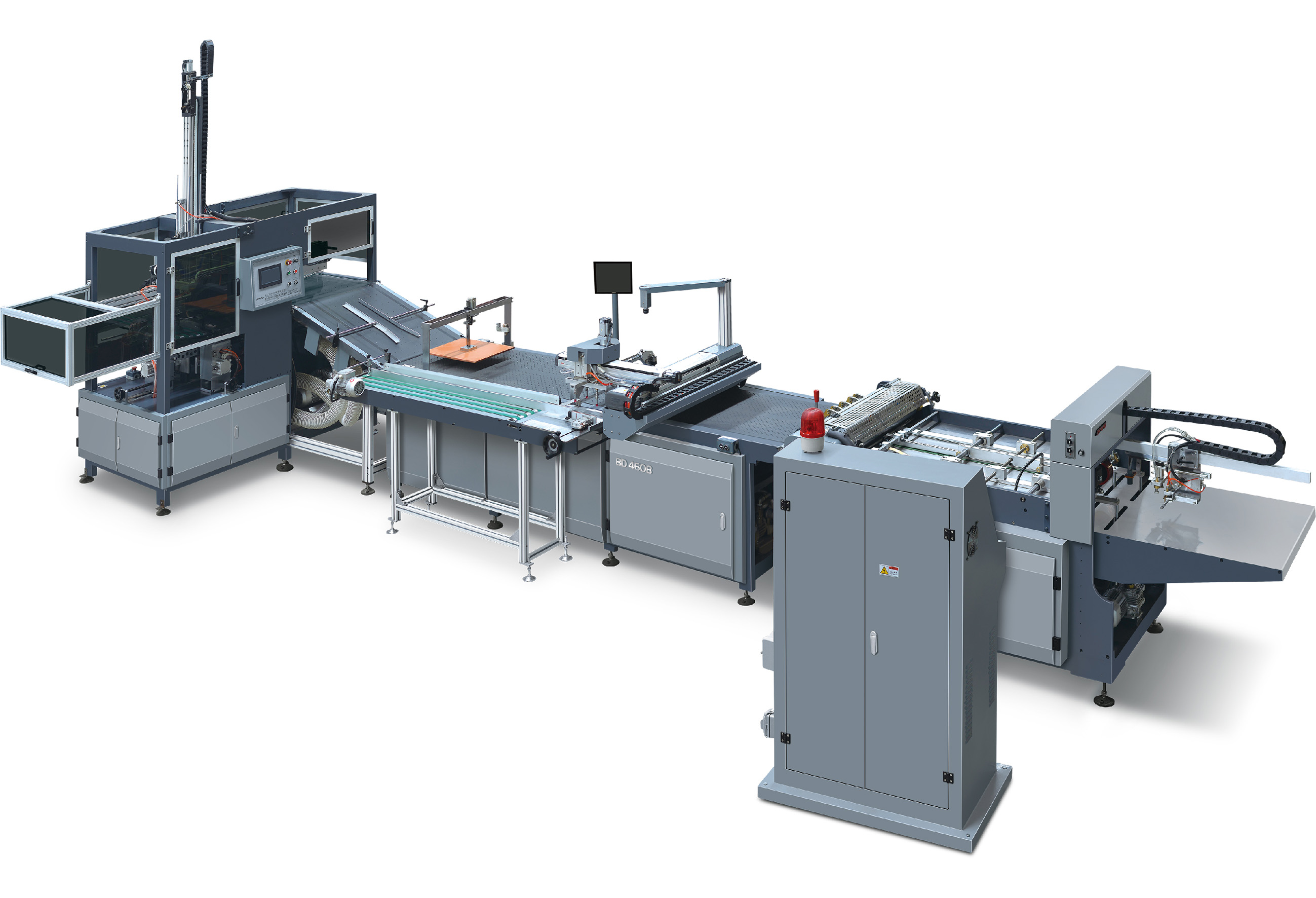

1.The feeder in this machine adopts back-push feeding system, which is controlled pneumatically and its structure is simple and reasonable.
2.The width between stacker and feeding table is adjusted concentrically in the center the operation is very easy without tolerance
3.Adopt imported ultrasonic double paper tester, featuring in simple operation, which can keep two pieces paper from entering into the machine at the same time
4.Automatic circulation mixing and gluing system for hot-melting glue
5.Hot-melting paper tape automatic conveying cutting and finish pasting the inner box quad stayer(four angles) of cardboard in one process.
6.The vacuum suction fan under the conveyer belt can keep the paper from deviating.
7.The paper and cardboard inner box employs hydraulic rectifying device to spot correctly.
8.The wrapper can continually wrap fold ears and paper sides and form in one process
9.The whole machine employs PLC photoelectric tracking system and HMI to automatically forming boxes in one process.
10.It can automatically diagnose the troubles and alarm accordingly.
