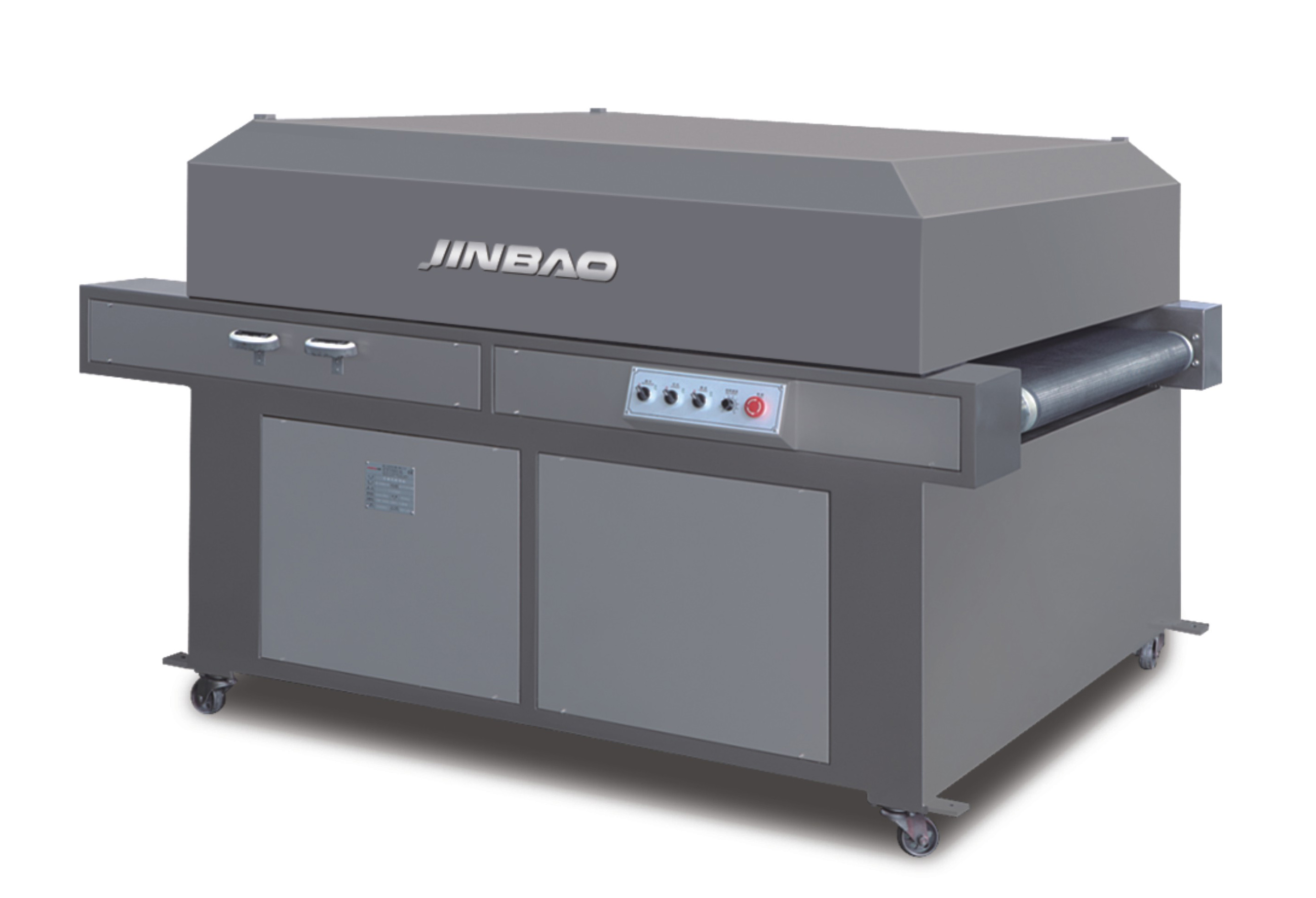

1 .The Cooling section is connected with flat conveyor dryer or UV machine, it make the paper out from dryer or UV machine cooling; we offer three cooling model: water-cool、air-condition N wind-cool.
2.This section need connect power independently, it with frequency conversion convey belt, can be used after other oven or UV dryer, or use independently.
3.The cooling section keep blowing the cold-air blast through the high pressure blower, cooling the paper fleetly, and ensure the thin paper delivery smooth; whole house design adopt keep certain temperature, decrease the waste of cool air and save energy.
Cool Model | Water-cool | Air-condition | Wind-cool |
Max. speed | 60m/min | 60m/min | 60m/min |
Powder of convey motor | 400W | 400W | 400W |
The lowest temperature | 15℃ | 20℃ | 24℃ |
Cool Machine Power | 3HP 2.2Kw Water-cool Machine | 1HP0.75Kwx2 Air-condition | |
Fan Power | 1.1Kw | 0.85Kw | 0.85Kw |
Weight | 900kg | 800kg | 700kg |
Overall dimension | 2100*2200*1330mm | 2100x2050x1330mm | 2100*1500*1330mm |
