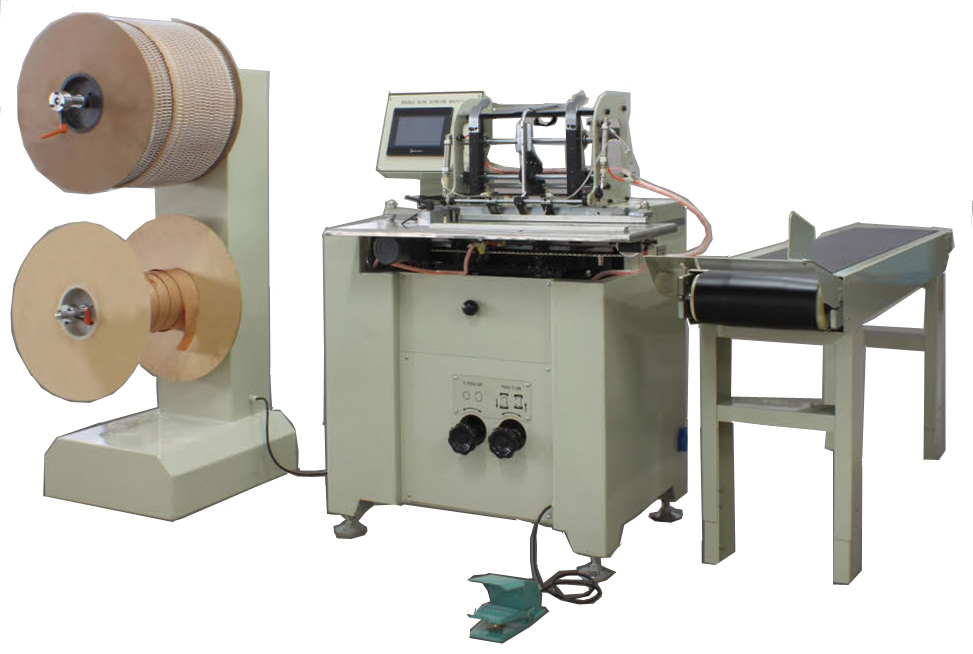

It is used for binding double wire books, notebooks calendars and so on.It has the function of automatic cutting, counting loops-counting skip binding and closing. It's best choice for double wire book binding.
Controlled by PLC, Easy to setting and adjusting.
Designing and manufacturing for normal wire and paper so the machine is very efficiently and reliably.
By changing the individually size closing moulds various loops diameters can be processed and the changing of the moulds is fast and easy.
Optional hanger attachment.
| Model | DCA-520 |
| Speed | 1500 books/h |
| Wire diameter | 1/4-3/4" |
| Work table | 680*310mm |
| Max width of binding | 520mm |
| Power | 220V 1PH |
| Air pressure | 5-8Kgf |
| Weight | 300kg |
Wire binding size:
| Size | Pitch | Back ground | Wire dia | Thickness | binding page |
| 1/4 | 3:1 | 4.0×4.0 | 6.4 | 4.9 | 45 |
| 5/16 | 3:1 | 4.0×4.0 | 7.9 | 6.3 | 60 |
| 3/8 | 3:1 | 4.0×4.0 | 9.5 | 7.9 | 70 |
| 7/16 | 3:1 | 4.5×4.5 | 11.1 | 9.3 | 85 |
| 1/2 | 3:1 | 4.5×4.5 | 12.7 | 10.9 | 100 |
| 9/16 | 3:1 | 4.5×4.5 | 14.3 | 12.2 | 120 |
| 5/8 | 2:1 | 5.0×5.0 | 15.9 | 13.4 | 130 |
| 3/4 | 2:1 | 5.0×5.0 | 19.1 | 16.6 | 160 |
