The machine is used for binding double wire books notebooks calendars etc. With the integration of automatic cutting loops-counting skip binding and closing it increased the production efficiency and reduces the cost remarkably.It's your best choice for double wire binding.
The machine is designed for normal wire and paper with a high reliability and low loss.
Various loops diameters can be processed by changing the individually closing moulds. It's easy and fast.

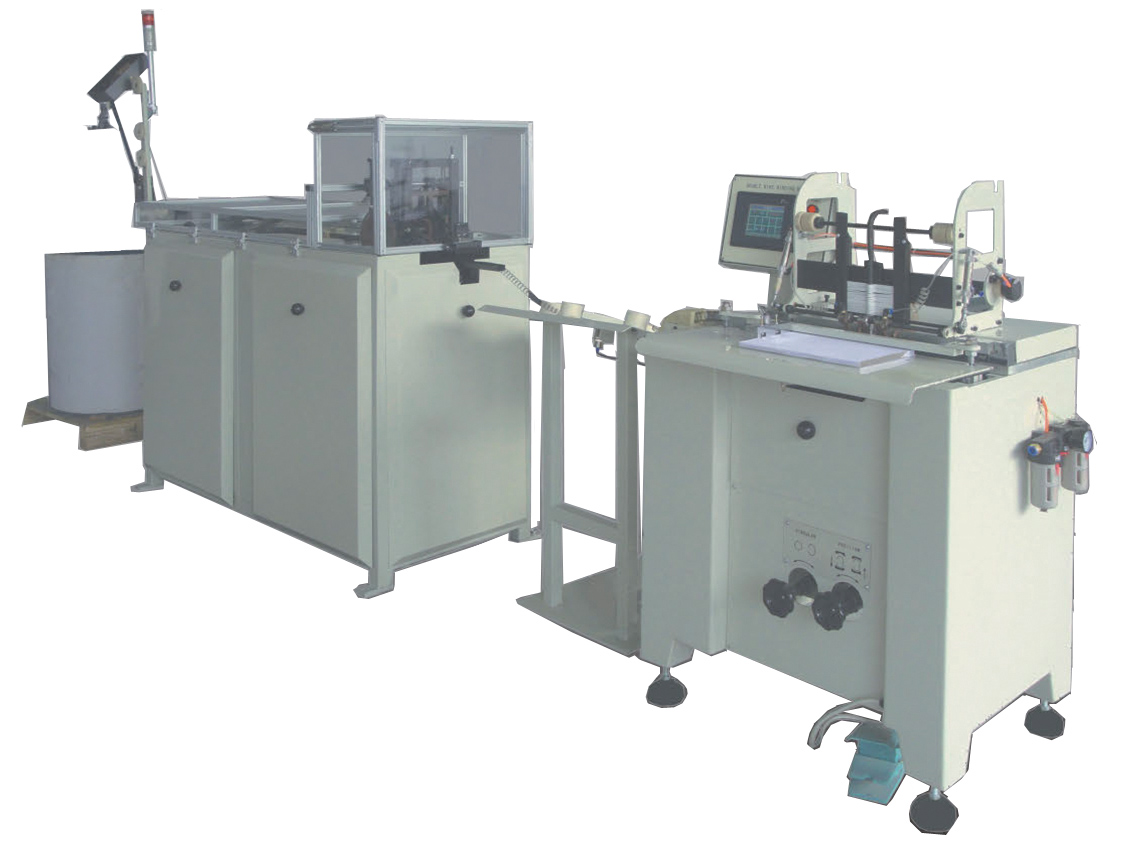

The machine is made up of double wire forming machine and double wire binding machine It increases the production efficiency and reduces the cost remarkably.
Optional hanger attachemnet is available.
| Speed | 1500 volume/h |
| Air pressure | 5-8kgf |
| Work table size | 680*310mm |
| Max width of binding | 520mm |
| Power | 220V 1PH |
| Weight | 800kg |
| Size | Pitch | Back ground | wire dia | Thickness | Binding page |
| 1/4 | 3:1 | 4.0*4.0mm | 6.4mm | 4.9mm | 45 |
| 5/16 | 3:1 | 4.0*4.0mm | 7.9mm | 6.3mm | 60 |
| 3/8 | 3:1 | 4.0*4.0mm | 9.5mm | 7.9mm | 70 |
| 7/16 | 3:1 | 4.5*4.5mm | 11.1mm | 9.3mm | 85 |
| 1/2 | 3:1 | 4.5*4.5mm | 12.7mm | 10.9mm | 100 |
| 9/16 | 3:1 | 4.5*4.5mm | 14.3mm | 12.2mm | 120 |
| 5/8 | 2:1 | 5.0*5.0mm | 15.9mm | 13.4mm | 130 |
| 3/4 | 2:1 | 5.0*5.0mm | 19.1mm | 16.6mm | 160 |
