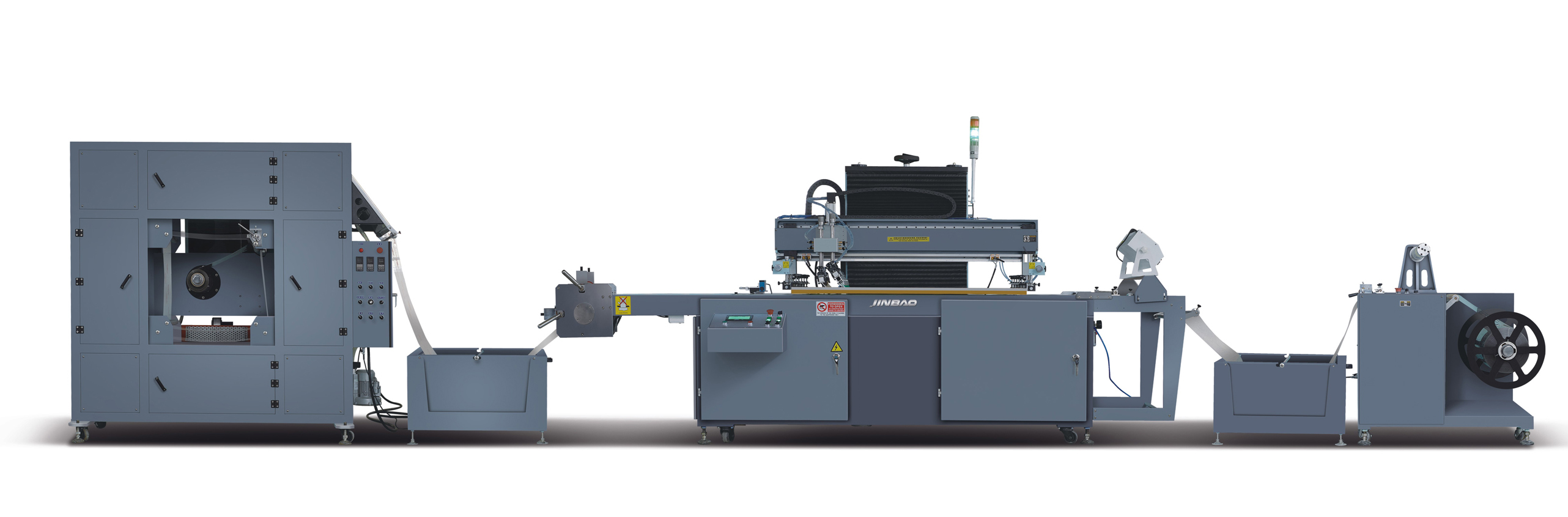

It's suitable for screen printing of flexible roll material can print on PET PVC PC transfer paper label paper MD MEMBRANE electronic switch meter panel sticker etc.
Applications:
home appliances electronic industry electronic-controlled membrane switch nameplate keystroke of remote control flexible printed circuit etc.
communication industry mobile phone keystroke battery accessories label nameplate of computer and peripheral terminal devices.
industrial control industry electronic switch instrument panel labels.
transportation industry marine transport navigation mark labels on container and auto carriage decorating labels on auto and motorcycle etc
apparel & textile industry non-woven fabrics print transfer printing of apparel & textile printing and packaging industry stickers etc
Model | JB-4070J | JB-60100J |
Max printing size | 380*700mm | 580*1000mm |
Max screen size | 700*1100mm | 900*1400mm |
Material width | 150-400mm | 150-600mm |
Max dia. of feed roller | 500mm | 500mm |
Max dia. of collection roller | 500mm | 500mm |
Printing speed | 1800t/h | 1800t/h |
Substrate thickness | 0.07-0.38mm | 0.07-0.38mm |
Print power | 3p 380v 50hz 2.7kw | 3p 380v 50hz 2.7kw |
Oven power | 3p 380v 50hz 13kw | 3p 380v 50hz 13kw |
Air required | 5-7bar | 5-7bar |
 |  |  |
 |  |
