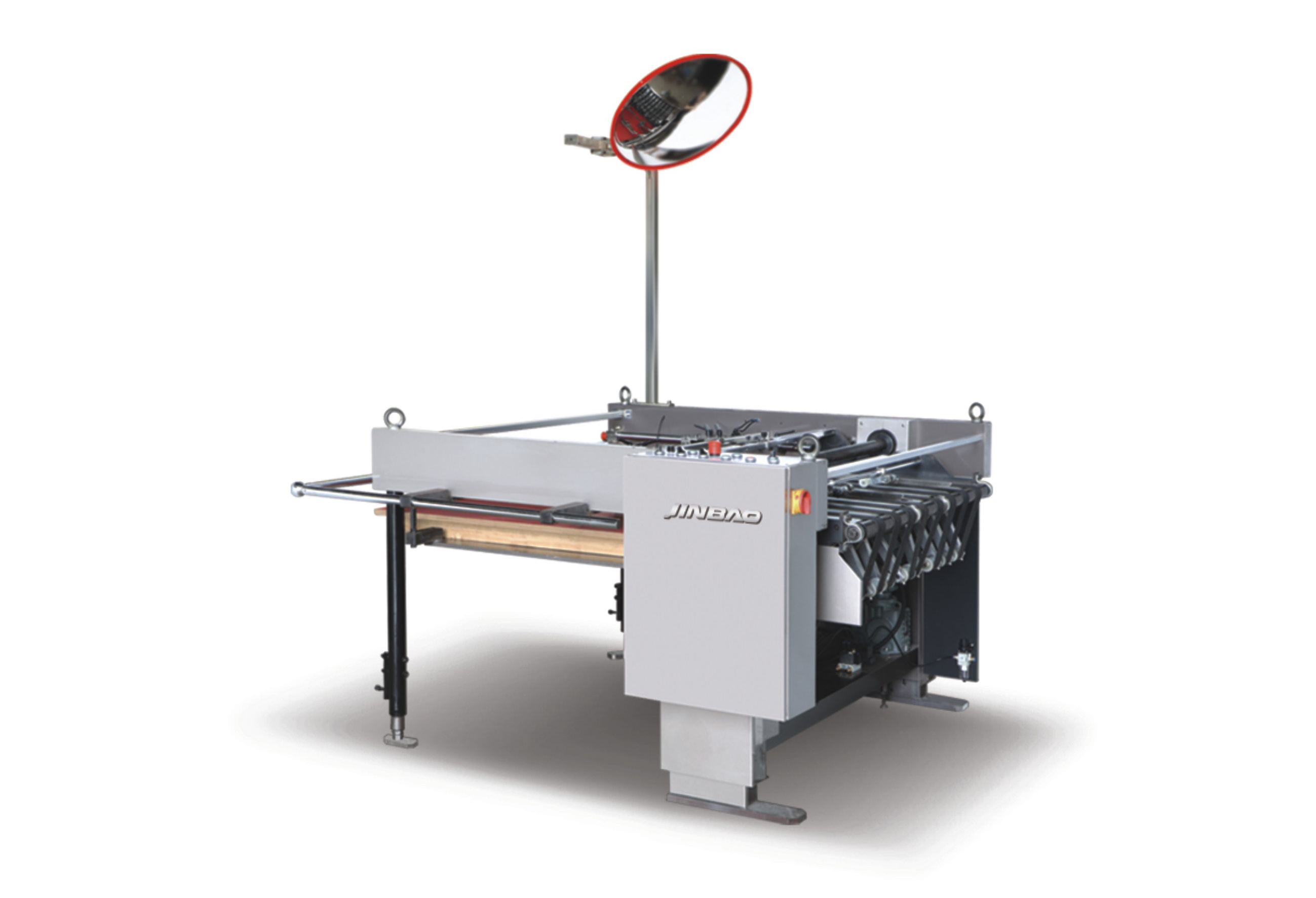

JB-800S/1050S full automatic stacker can be used with full automatic screen press, UV machine or UV/IR dryer together, used to collect paper and make the paper in order automatically and enhance productive efficiency & product quality.
1. Controlled by PLC, collecting the paper and making the paper in order automatically.
2. Fit for all kinds of paper size, adjusted equipment in back, left and right side can be operated easily and conveniently
3. Photoelectric equipment inspects and controls boards, the pneumatic organ make the paper in order.
4. The induction equipment controls the paper holding board decline, and ensure the paper collecting automatically and glibly.
5. The paper feeding system is controlled by frequency conversion, stepless turning.
Model | JB-800S | JB-1050S |
Max paper size | 800X600mm | 1100X750mm |
Min paper size | 350X250mm | 350X250mm |
Top speed | 4200p/h | 4200p/h |
Power | 3p 380v 50Hz 0.92KW | 3p 380v 50Hz 0.92KW |
Weight | 600kg | 650kg |
Overall size | 1900X1750X2500mm | 2000X2050X2500mm |
