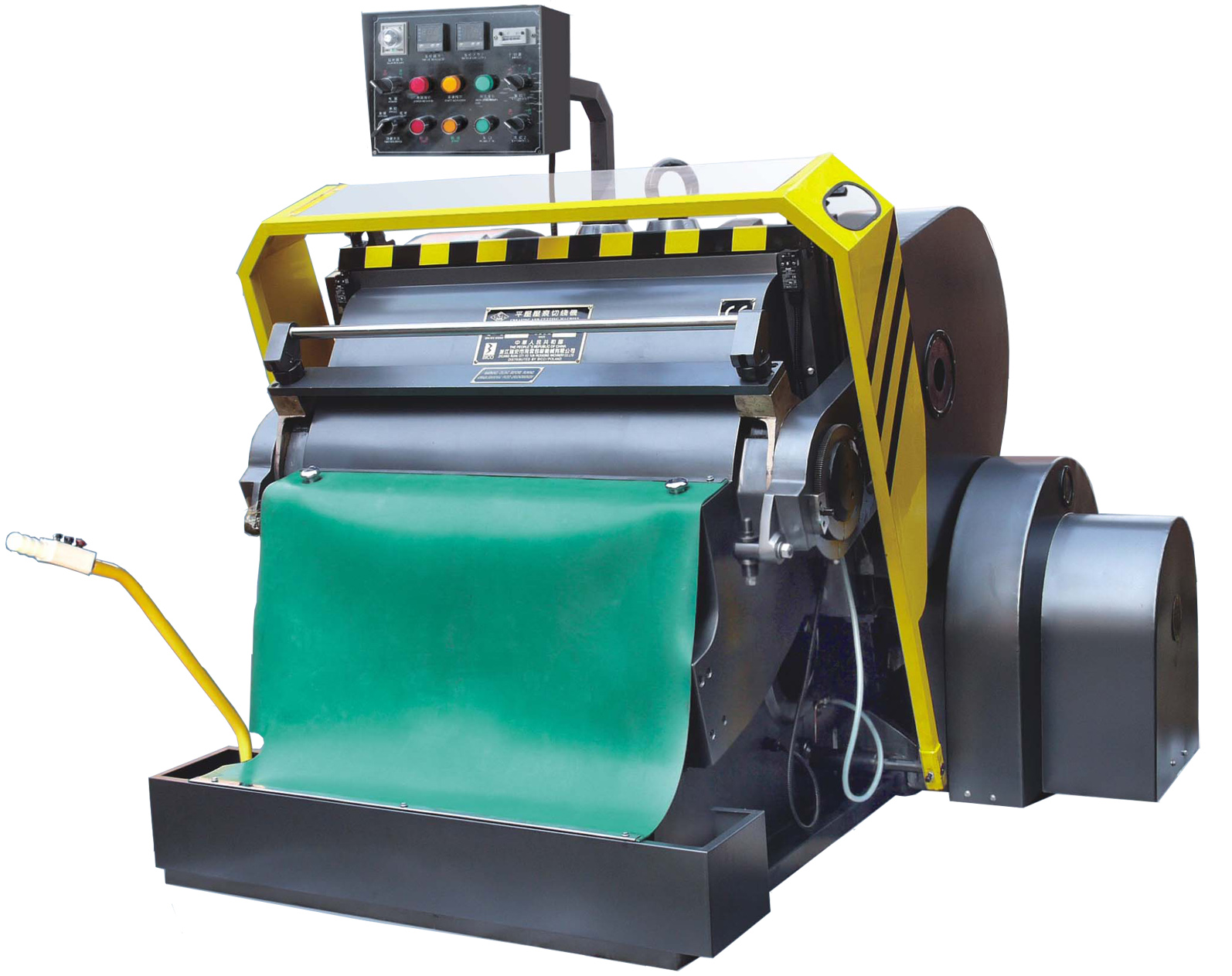

According to the development demand of printing and packaging industry needing to process PVC PP harder plastic slice material in the way of thermal cutting, the company has improved and designed original ML flat indentation cutting machine.The machine has original indentation machine's all functions.There is hot plate and asbestos heat insulation plate on the machine's big plane. It is heated by pipe heating device. The machine can be set according to the processed material (it's temperaure scope is from 0-400℃).The temperaure control meter matched with its testing parts to set the scope of temperature error.
Model | Inter Chase Size | Working Speed | Max.Rule length | Motor Power | Machine Weight |
ML-2500 | 2500×1400mm | 13±2 Strokes/min | <75m | 18.5 kw | 19000kg |
ML-2000 | 2000×1400mm | 13±2 Strokes/min | <72m | 15kw | 15000kg |
ML-1800 | 1800×1300mm | 13±2 Strokes/min | <62m | 11kw | 14200kg |
ML-1600 | 1600×1250mm | 13±2 Strokes/min | <50m | 11kw | 12000kg |
ML-1500 | 1500×1080mm | 14±2 Strokes/min | <45m | 7.5kw | 7800kg |
ML-1400 | 1400×1000mm | 15±2 Strokes/min | <45m | 5.5kw | 7000kg |
ML-1300 | 1300×920mm | 15±2 Strokes/min | <40m | 5.5kw | 6000kg |
ML-1200 | 1200×830mm | 23±2 Strokes/min | <32m | 4 kw | 5000kg |
ML-1100 | 1100×800mm | 23±2 S trokes/min | <32m | 4 kw | 4500kg |
ML-1040 | 1040×720mm | 23±2 Strokes/min | <32m | 4 kw | 4000kg |
| ML-930 | 930×670mm | 23±2 Strokes/min | <25m | 3 kw | 3000kg |
ML-750 | 750×520mm | 25±2 Strokes/min | <15m | 2.2kw | 2000kg |
