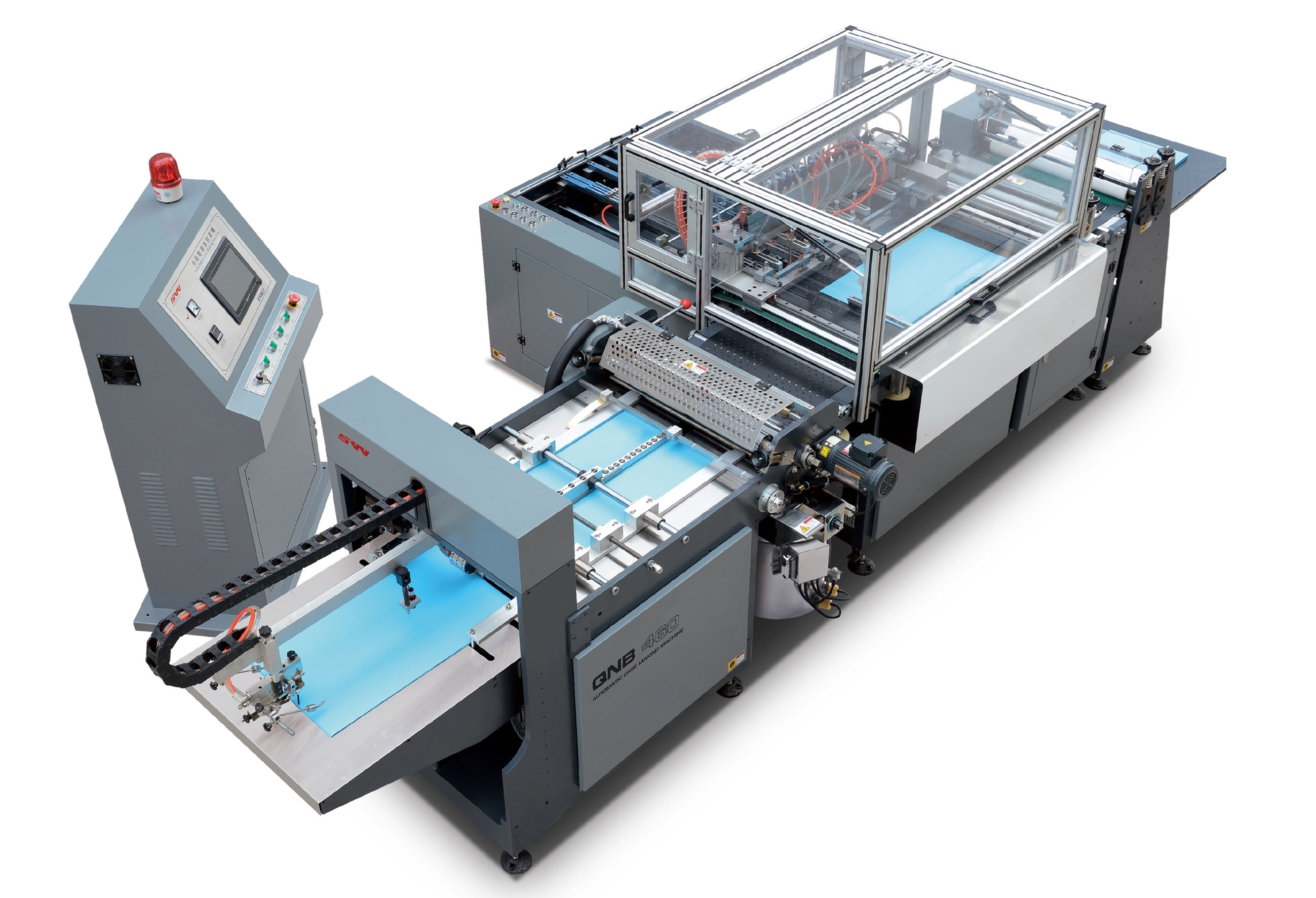

With the increasing change of economic environment and demand diversity, it's our priority to develop a new high-tech device matching. With this market demand in hardcover machine field. Meanwhile, based on the present background demand of high speed & stability, high quality, and competitive price with perfect performance, we have successfully developed new model machine with excellent experience:QNB600/460 automatic lining machine . And now this new model plays a strategic role in meeting clients' need and creating more benefit.

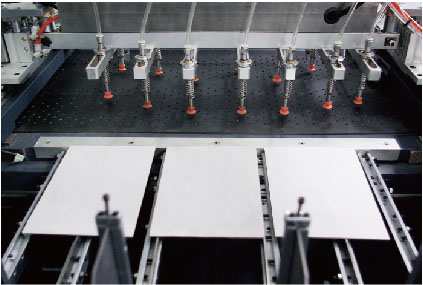

1. Automatic error correction device for improvement of accuracy of cardboard positioning. It has achieved higher demands for parallel degree of combination of facial tissue and cardboard and coincidence degree and even some user's requirement for this accuracy reaches less than 0.3mm.

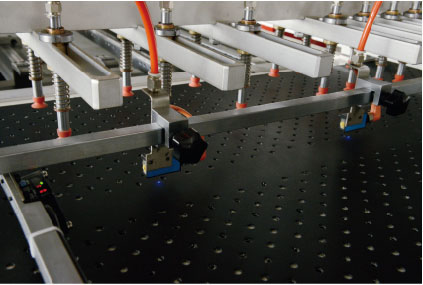

2. Optical fiber precise detection device to improve accuracy of cardboard aaccuracy.It has improved rate of finished products.
Technical parameter:
| Model | QNB-460B | QNB-600B |
| Length of paper | 200-830mm | 200-1030mm |
| Width of paper | 120-480mm | 120-600mm |
| Thickness of paper | 80-300g/m2 | 80-300g/m2 |
| Thickness of cardboard | 1-3mm | 1-3mm |
| Speed | 0-25pcsc/min | 0-25pcs/min |
| Power | 10.5kw | 11.5kw |
| Weight | 2000kg | 2200kg |
| Dimension | 4900*2150*1500mm | 6800*2600*1500mm |
|  |
 |
