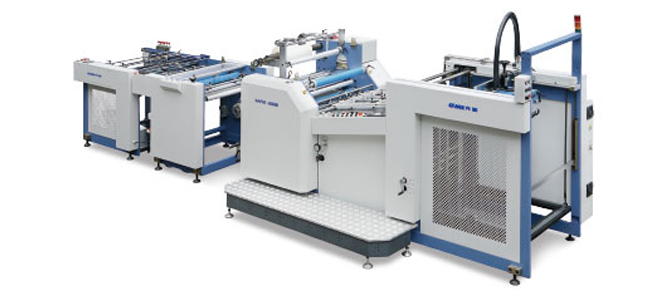

SAFM-800B AUTOMATIC DOUBLE SIDED LAMINATOR

Features:



Single and Double Sided Lamination

Main technical parameters:



Max Paper Size 780X1040mm
Min Paper Size 300x300 mm
Paper Thickness 100-500 g/m2
Laminating Speed 0-65 m/min
Gross Power 30kw
Weight 3200 kg
Overall Dimensions 6000x2500x1900 mm
Pre-stacker 1850mm


Configuration:

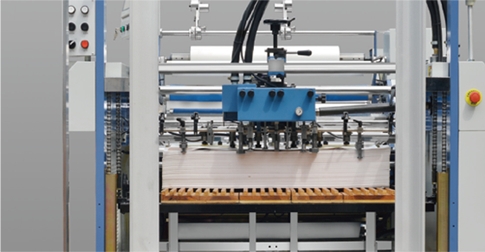

1. Auto Feeder

2.Electromagnetic Heater

 FEEDER.jpg HEATER.jpg

This machine is equipped with a paper pre-stacker, Servo controlled feeder and a photoelectric sensor to ensure that paper is continuously fed into the machine

Equipped with advanced electromagnetic heater. Fast pre-heating. Energy saving. Environmental protection.

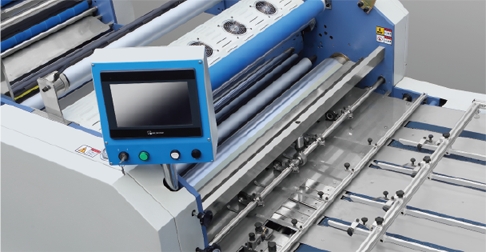

3.Human-computer interface

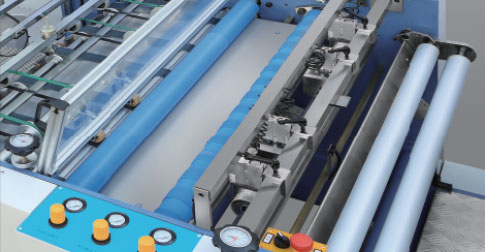

4. Separation system


A user-friendly interface system with a color touch screen simplifies the operation process. The operator can easily and automatically control paper sizes, overlapping and machine speeds.

Pneumatic separation system to separate the paper stably and quickly.

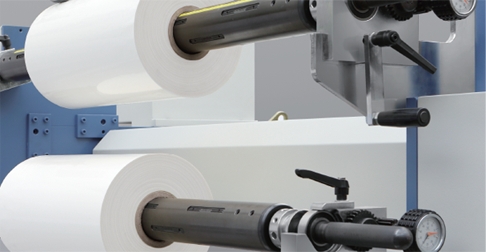

5. Double Film Shaft

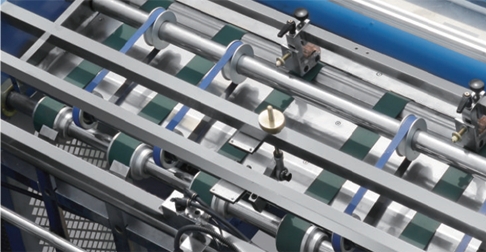

6. Corrugated Delivery

 DOUNLE FILM SHAFT.jpg


Saving time of film loading and uploading, Improving efficiency

A corrugated delivery system collects paper easily

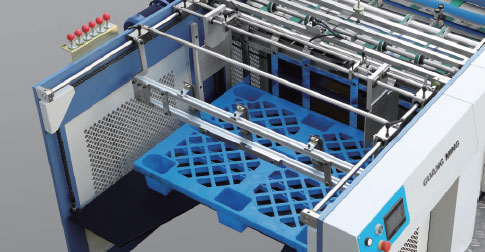

7. Automatic Stacker

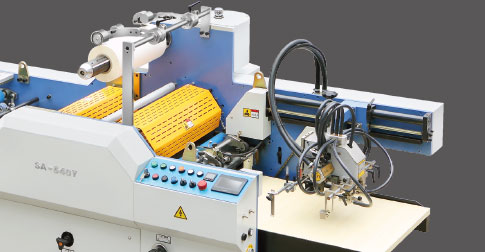

8. Anti-curve device


Automatic stacker receive the sheets quickly in order without stop the machine as well as counter the sheets.

Equipped with anti-curve device to avoid curvature of thin paper
