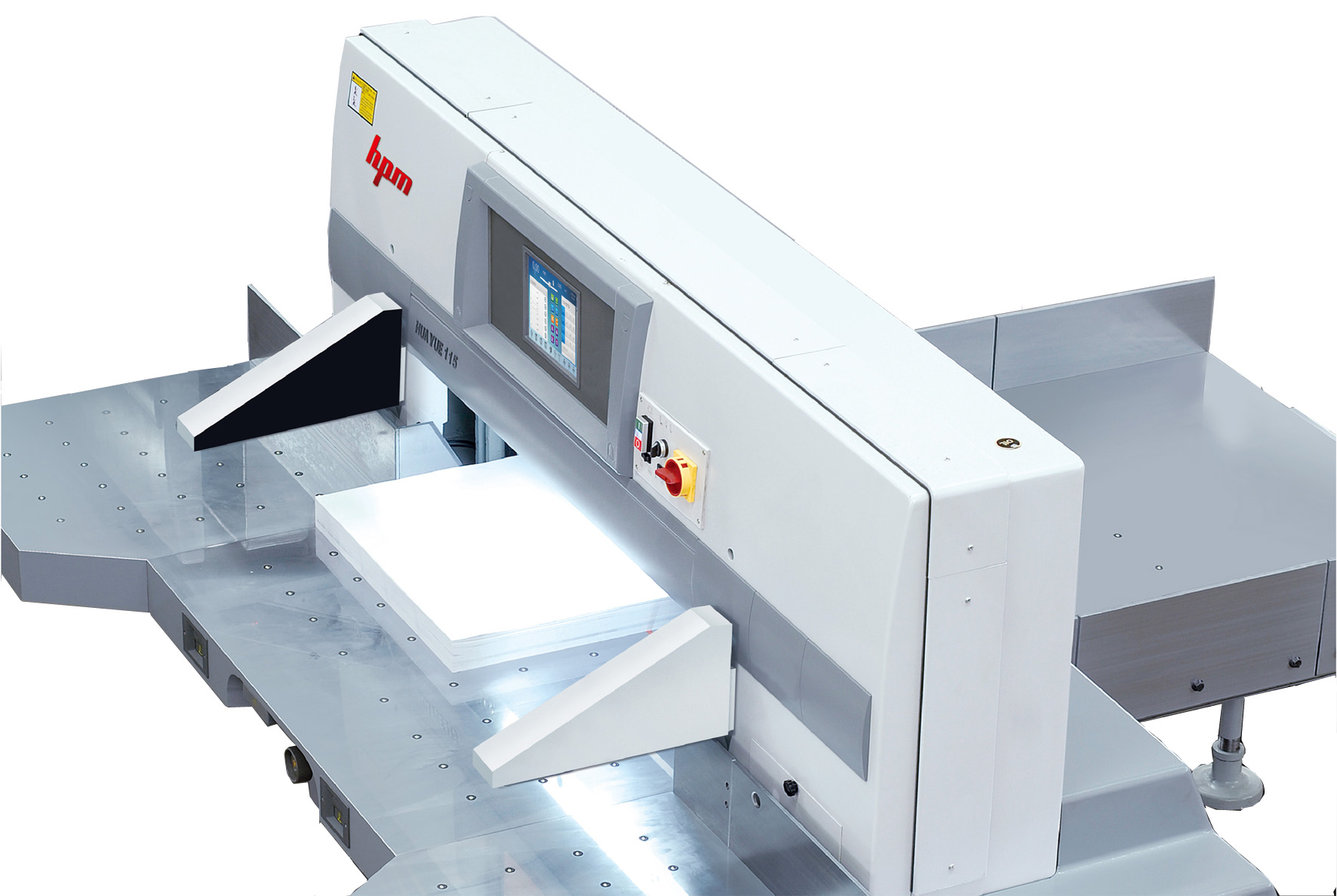

SQZK 78 92G 115G 130G 137G 168G 188G
◆With 10.2 inch full touch screen
◆With fault diagnostics and non-repreat safety guards.
◆Metric system and British system two units
◆Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism
◆Worm gear drive mechanism, hydraulic clutch, mechanical brake.
Italy oil pump.
◆One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.
◆Import ball screw with double linear guides to drive backgauge.
◆Main electronic units are from French TE and Japanese ORMON famous international brands.
◆Position resolution of backgauge is 0.01mm, closed-loop control,
◆The backgauge is driven by a Panasonic servo-motor with four speed levels. Max. backgauge speed is 16m/min.
◆Knife-seat guiding structure with sliding block type, cam type for adjusting-knife mechanism.
◆Clamp press paper stack through hydraulic system, the spring re-position.
◆Worm gear drive mechanism, hydraulic clutch, mechanical brake.
◆WESSEL hydraulic system from Germany (optional), Italy oil pump.
◆Switzerland ABB main motor(optional).
◆One-piece, slotless and chrome-plated cast iron work table is sturdy and easy to maintain.
◆Import ball screw with double linear guides to drive backgauge.
◆Whole sealing safety guard for rear work table (optional).
◆Germany LEUZE infrared protection device(optional).
◆Main electronic units are from French TE and Japanese ORMON famous international brands.
| Model | 78 | 92G | 115G | 130G | 137G | 168G | 188G | |
| Max cutting width | cm | 78 | 92 | 115 | 130 | 137 | 168 | 188 |
| inch | 30.7 | 36.2 | 45.3 | 51.2 | 53.9 | 66.1 | 74 | |
| Max cutting length | cm | 78 | 92 | 115 | 130 | 145 | 168 | 188 |
| inch | 30.7 | 36.2 | 45.3 | 51.2 | 57.1 | 66.1 | 74 | |
| Max cutting height | cm | 12 | 12 | 16.5 | 16.5 | 16.5 | 16.5 | 16.5 |
| inch | 4.7 | 4.7 | 6.5 | 6.5 | 6.5 | 6.5 | 6.5 | |
| Min cutting size without false clamp plate | cm | 2.5 | 2.5 | 3 | 3 | 3 | 3 | 3 |
| inch | 1 | 1 | 1.2 | 1.2 | 1.2 | 1.2 | 1.2 | |
| Min cutting size with false clamp plate | cm | 5 | 9 | 9 | 9 | 9 | 9 | 9 |
| inch | 2 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | |
| Front table length | cm | 69.7 | 63.2 | 72 | 73 | 73 | 75 | 75 |
| inch | 27.4 | 24.9 | 28.3 | 28.7 | 28.7 | 29.5 | 29.5 | |
| Max clamp pressure | N | 35000 | 35000 | 40000 | 40000 | 45000 | 60000 | 70000 |
| Cutting speed | T/Min | 45 | 45 | 46 | 46 | 46 | 46 | 46 |
| Main motor | KW | 3 | 3 | 4 | 4 | 4 | 5.5 | 5.5 |
| Gross power | KW | 4.3 | 4.3 | 5.85 | 5.85 | 5.85 | 8.4 | 8.4 |
| Net weight | Kg | 2200 | 2300 | 3700 | 3900 | 4100 | 6200 | 6600 |
| Packing size | cm | 228*160*185 | 228*140*185 | 290*175*212 | 290*175*212 | 290*175*212 | 360*205*220 | 380*205*220 |
