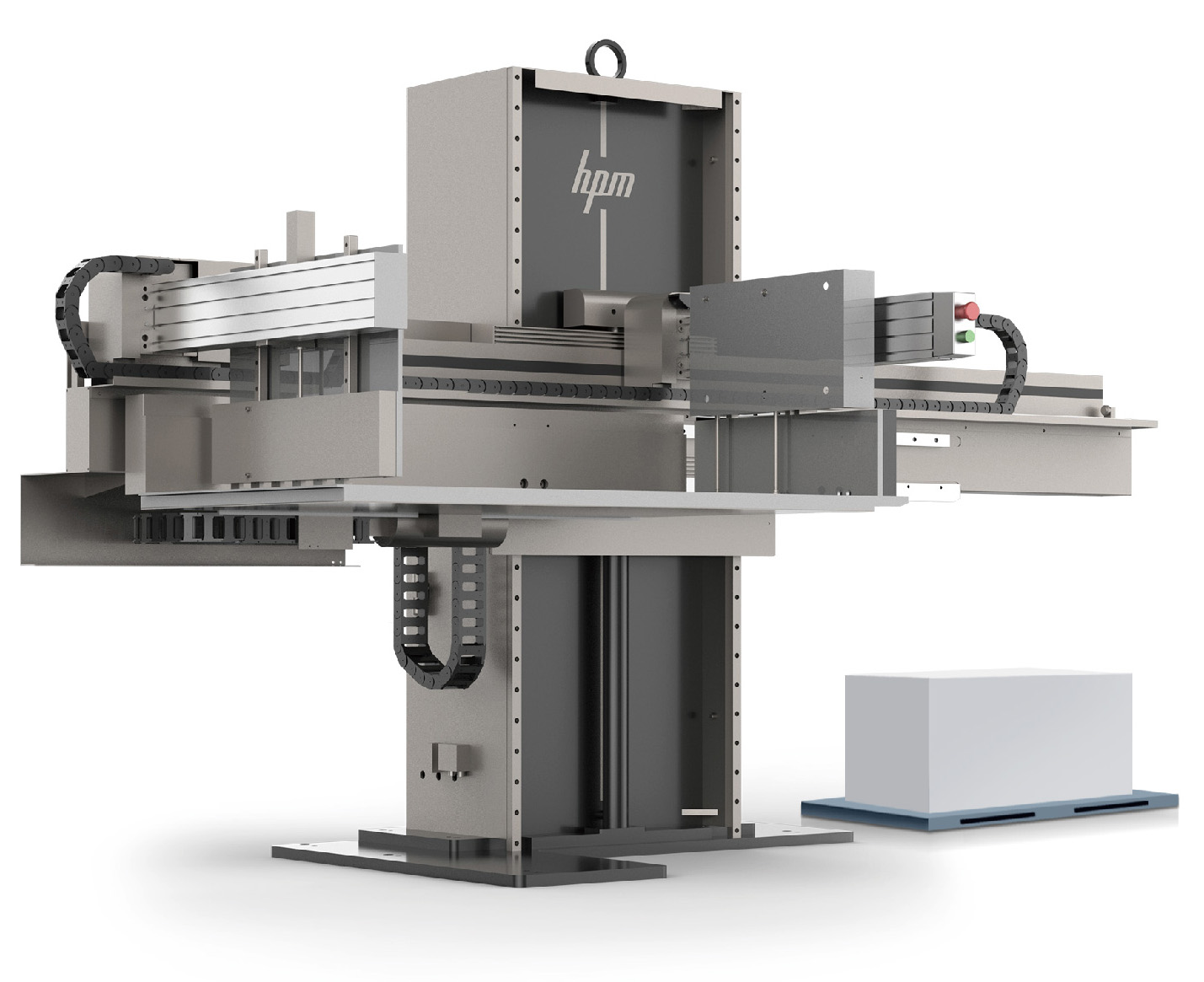

Intellective stack unloader is with automatic identification to paper stack size and position automatic paper feeding and unloading functions. It can unload cutting products from the working table to the setted base quickly and neatly.
Model | XZ1050 | XZ1450 | XZ1650 | |
Plate size | mm | 895*1570 | 1050*1805 | 1300*1920 |
Max paper format | mm | 860*1200 | 1010*1450 | 1270*1650 |
Min paper format | mm | 300*400 | 300*400 | 300*400 |
Max layer height | mm | 165 | 165 | 165 |
Max total height | mm | 1600 | 1600 | 1600 |
Min pallet height | mm | 150 | 150 | 150 |
Max layer weight | kg | 350 | 400 | 450 |
Connected load | kw | 4 | 5 | 5 |
Air demand | bar | 6 | 6 | 6 |
Air consumption | l/min | 5 | 6 | 6 |
Packing size | cm | 354*218*258 | 410*240*258 | 440*278*258 |
Gross weight | kg | 1850 | 2300 | 2450 |
