The latest achievements of laminating amchine automation process, flip flop collect paper instead of artificial collect paper automatic positive and negative stacked in one pile liberating of your hands. Doing all by machines, you only checking.
High precision paper feeding mechanism
Bottom and top paper automatic tracking
Top paper side pull gauge positioning accuracy
Non-stop collection make continuous productin
Positive and negative stack of paper automatic trimming
One key operation fault automatic detection

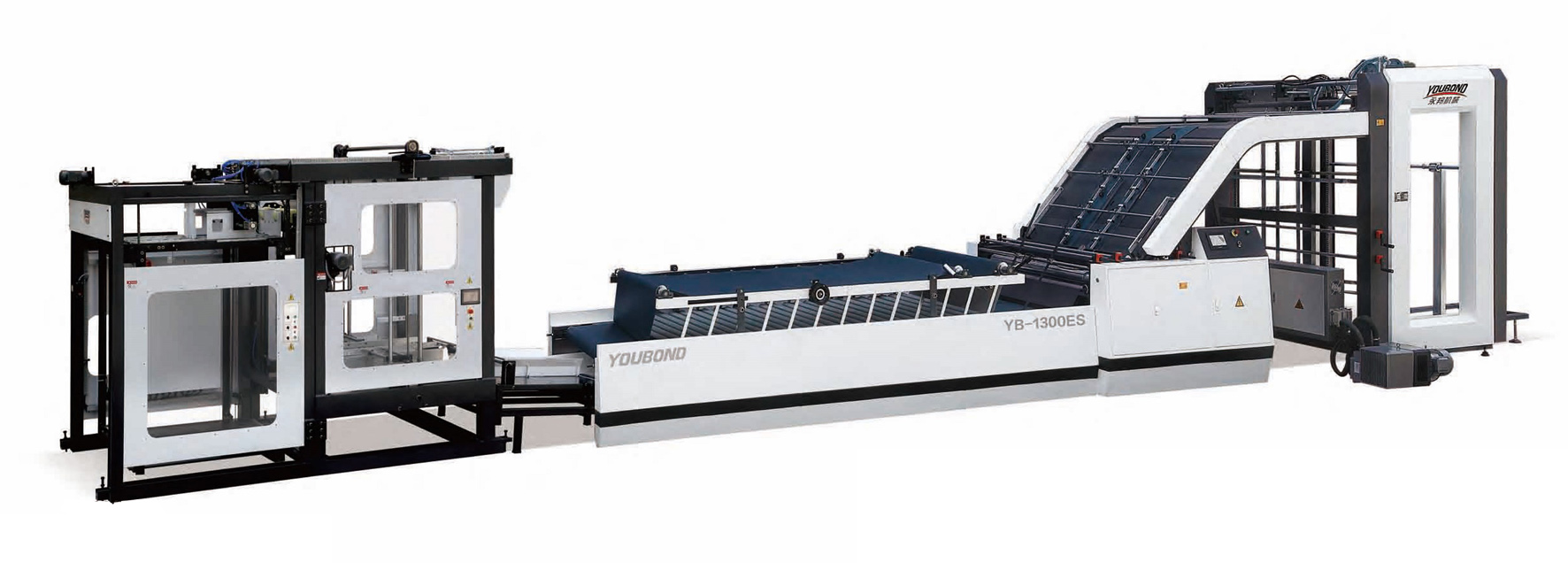

Time saving sophisticated laminating machine
| Model | YB-1300ES | YB-1450ES | YB-1650ES |
| Max sheet size | 1300*1250mm | 1450*1250mm | 1650*1450mm |
| Min sheet size | 500-500mm | 500*500mm | 500*500mm |
| Top sheet thickness | 150-600g | 150-600g | 150-600g |
| Bottom sheet thickness | A,B,C,E,F corrugated paper industrial paperboard | ||
| Max speed | 7000sheets/hour | ||
| Fitting precision | ±1mm | ||
| Power | 16kw/380v | 17kw/380v | 18kw/380v |
| Weight | 8000kg | 8500kg | 9000kg |
| Dimension | 17.5*2.5*3m | 18*2.5*3m | 18.5*2.7*3m |
