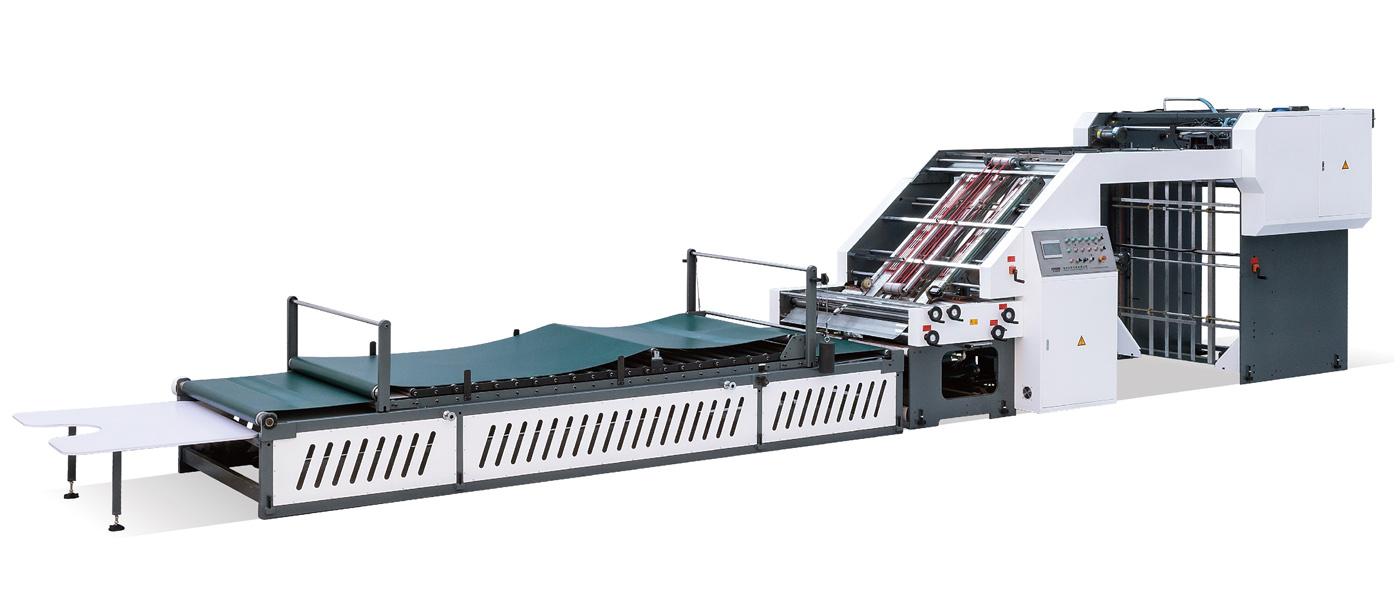

This machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. Servo laminating machine is simple for operation, just enter the paper size, machine can automatically finish adjustment.
| Model | YB-1450H | YB-1650H |
| Max Sheet | 1450×1300mm | 1650×1450mm |
| Min Sheet | 500×500mm | 500×500mm |
| Top Paper Thickness | 150-500g | 150-500g |
| Max Speed | 150m/min | 150m/min |
| Fitting Precision | ±1.5mm | ±1.5mm |
| Measurement | 13×2.4×2.4M | 15×2.6×2.4M |
| Machine Power | 22KW/380v | 25KW/380v |
| Bottom Paper Thickness | A、B、C、E、F CORRUGATED PAPER INDUSTRIAL PAPERBOARD | |
|  |
| Bottom Paper Feeding:Use imported Servo motor electric controlling system, with Japan NITTA suction belt to make suction power inverter, and belt cleaned by water roller, Patented technology to ensure corrugate and cardboard goes out smoothly and simple operation. | Top Sheet Feeding Mechanism:Equipped with high speed auto dedicated feeder, both paper lifting and feeding nozzle can freely adjust angle to the paper, to ensure that whether thick or thin paper can be delivered rapidly and smoothly. |
 |  |
| Electrical System: Designed in the accordance with European CE requirement, ensure machine stability, high efficiency and low failure. Using man-machine interface and PLC combination, display all the information, such as warning, error detect, failures, and operating speed, etc on the screen at a glance. | Pre-Stack Part:Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of the pre stack paper frame, save time and effort. |
 |  |
| Glue Rller:Stainless steel roller, never rust, after narrowly grinding, guaranteed the minimum amount glue coated evenly. Down roller be cleaned by water roller | Transmisson:With imported double teeth belt drive and Switzerland ROSTA tension device ensure the drive accurate, stable and low noisy |
 |  |
| Positioning System:The use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. | Leading Edge Feeding System(option):This system is for option, more suitable for large size and thick bottom sheets. |
