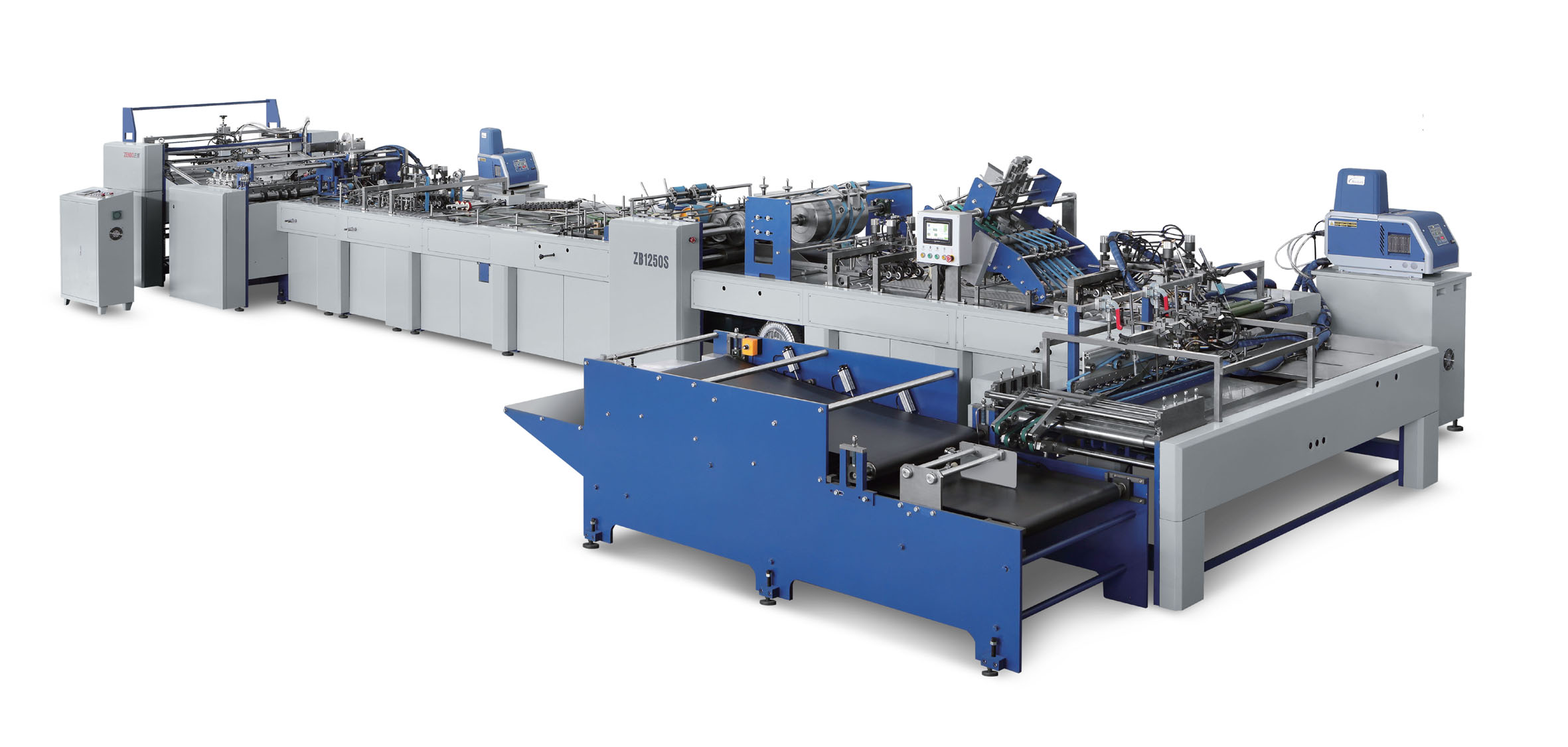

ZB1250S-450 fully automatic sheet-feeding paper bag making machine is suitable for the mass bag production, it is the first choice of medium and top grade handbag device. This product adopts mechanical, electricity, light, gas integration technology, combine a number of its proprietary technology, use the creased sheet paper as raw material, can one time finish: paper feeding, positioning, top folding, tube forming, gusset forming, bottom opening, bottom cardboard inserting and bottom gluing automatic, then compaction output. adopt the PLC programmable control, frequency control technology to realize the integral multi- dimensional control, more centralized control and single point remote control operating. with characteristics of good quality and high efficiency, its technology ranks leading level in domestic similar products.
Art paper white board and ivory board need lamination All paper including kraft paper need die-cutting in advance.
Max. sheet (LX W) | 1200x600mm |
Min. sheet (LX W) | 560x350mm |
Sheet Weight | 200g-350g/m2 |
Bottom Width | 90-160mm |
Bag Width | 180-430mm |
Top Folding Deepth | 30-70mm |
Total Power | 20kw |
Machine Size | 18200x2400x1800mm |
Speed | 40-70bags/min |
Total Weight | 8T |
Glue Type | Water soluble cold glue |
