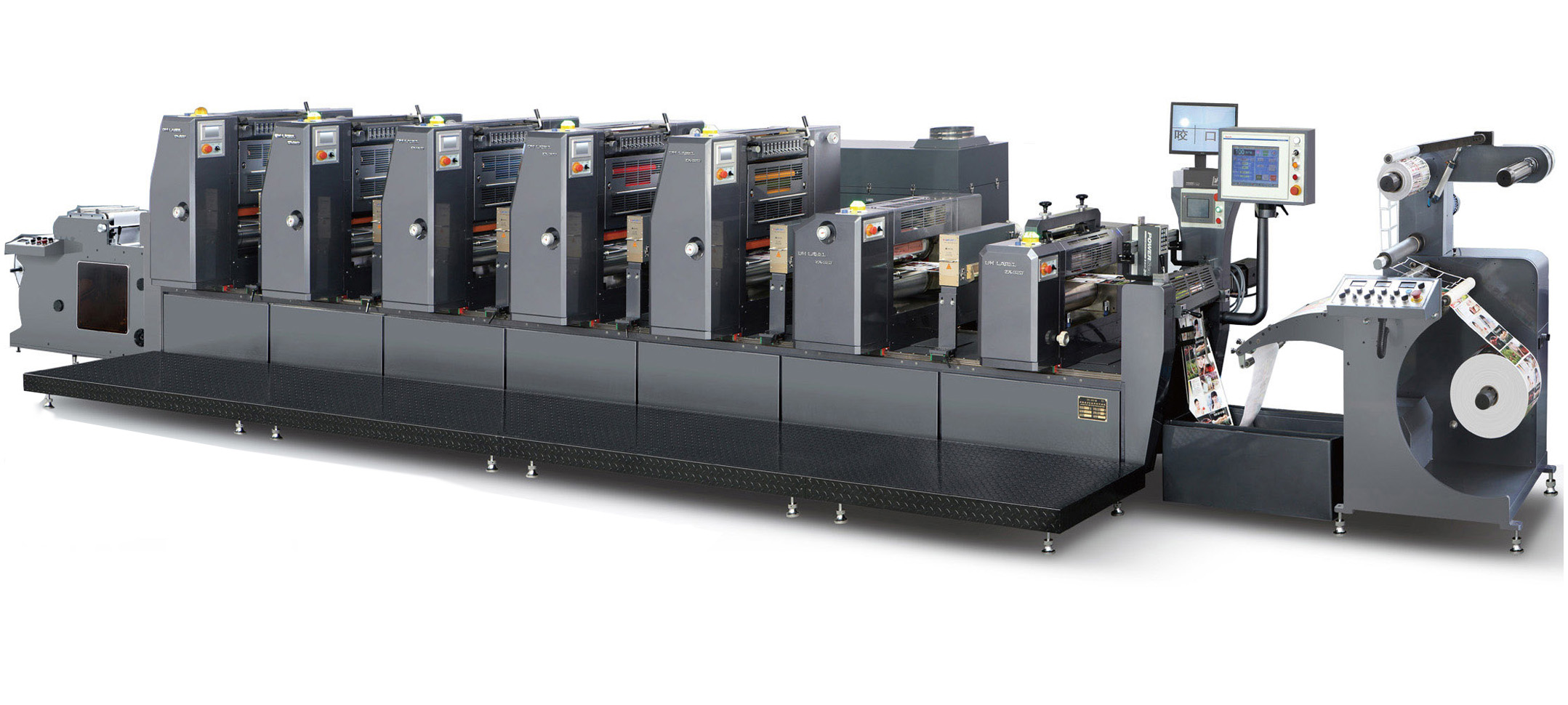

ZX-320 INTERMITTENT LABEL OFFSET PRINTING MACHINE

Introduction:

1.ZX-320 machine adopts exact servo control system which  can ensure the stabilization when the printing material in the printing process. It can Free from the printing roller change. The operation of this machine is fast, convenient and simple.

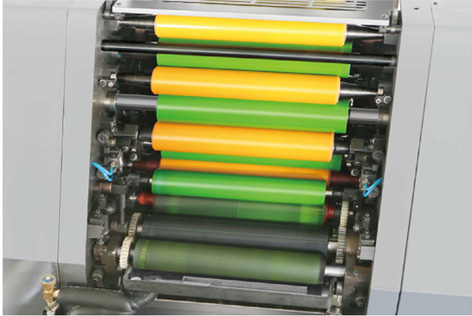

2.Printing unit: adopting high quality and heavy offset printing unit. Assembled with 19 pieces of ink rollers 、4pcs of  Form Rollers and 4pieces of  Water rollers (alchohol dampening system), has  nice  ink  working  system  to  avoid  Streak  trouble and Ghost image efficiently, largely increase the printing quality. The definition and precision made would never be reached by Flexo press.

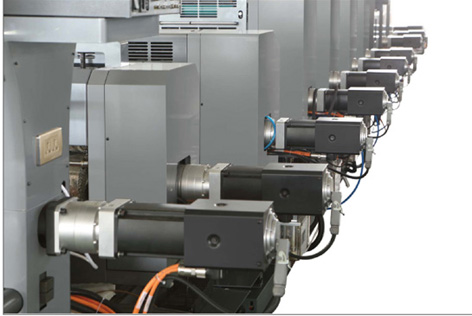

3. Shaftless transmission system: every printing unit transmitted by an independent servo motor, 15 sets of servo motors in total for whole machine (6color) to ensure the exact color registering precision during high speed operation.
4. Positioning system: The only work is to input the printing length on the main control panel, every unit will be motioned to the right position automatically. Largely saves time and materials when adjust the color register.
5. Color registering system: the vertical and horizontal motions of every printing unit are all controlled by independent motor (ease the laboring and reduce the waste). By video still system, the machine can regulate vertical & horizontal Registering without stopping, it improves the printing quality and increases the producing capacity.
6.Super Large printing area: 300X350, the maximum printing length could be reached at 350mm and the running maximum speed is 63m/min. By high-precision photocells, the machine ensures multi-register print on  both  side, make the possibility of label pattern variety.
7.Every printing unit equips with clutch device to be stopped independently by lifting away when needed. This system extends the machine using life
8.Multi options: flexo UV varnishing unit (both solid and spot) and rotary die-cutting unit can be the option for this machine. Only one big magnetic die-cutting cylinder used in this machine, largely saves the tooling cost. Different die-cutting job can be achieved only by changing the flexible die.
9.Touch LCD screen,  faster CPU, 12inch  operating  display, independent  touch  screen  in  each  printing  unit,  powerful human-computer dialogue system, multi-guide inspecting display interface, instant alarm signal, makes operation much easier and more efficient.
10.PS plate Intermittent printing adopted, hits the high-level demands whatever high, mid or low capacity printing task, and it is an ideal choice for print firms to produce the high-grade adhesive labels.

Technical parameter:

Machine configuration:

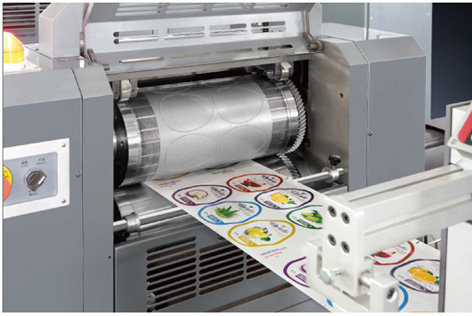

Heavy offset printing unit: adopting thigh quality and heavy offset printing unit. Assembled with 19 pieces of rollers 4pcs of form rollers and 4 pieces of water rollers(alchohol dampening system) has nice inking system which can largely avoid gear mark and ghost image The fine and accurate printing would never be reached by flexo/letterpress machine.	Shaftless driving system: every printing unit run by an independent servo motor, 15 sets of servo motors in total for whole machien(6 color) to ensure the exact color registration during high speed operation. The vertical and horizontal motions of every printing unit are all controlled by independent motor(ease the laboring and reduce the waste)

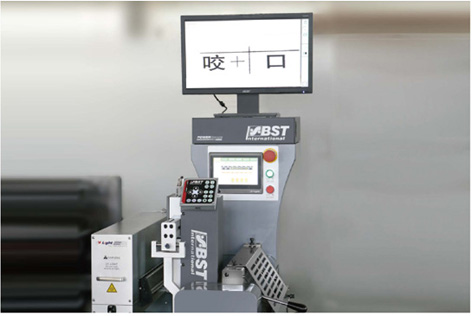

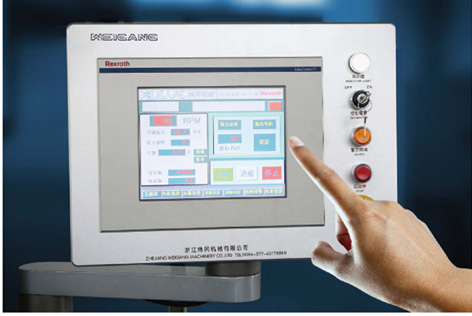

Video inspecting system: by video still system, the machine can regulate vertical & horizontal registering without stopping it improves the printing quality and increases the producing capacity.	Touch screen control system: touch LCD screen faster CPU 12 inch operating display independent touch screen in each printing unit powerful human-computer dialogue system multi-guide inspecting display interface instant alarm signal makes operation much easier and more efficient.

OPTION ITEMS:

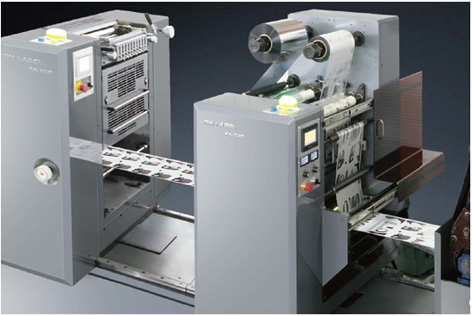

Cold foiling unit: inline cold foiling has the characteristic of fast speed high efficiency increase the decorative effect for color and graphic.	Screen printing unit: inline flat screen printing has characteristic of thick ink layer strong relief perception.

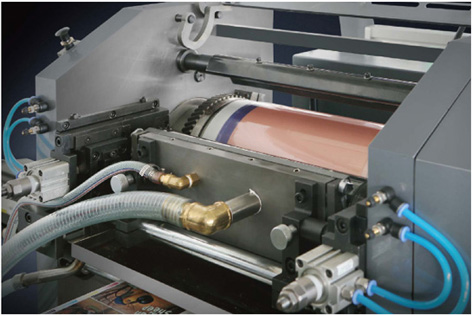

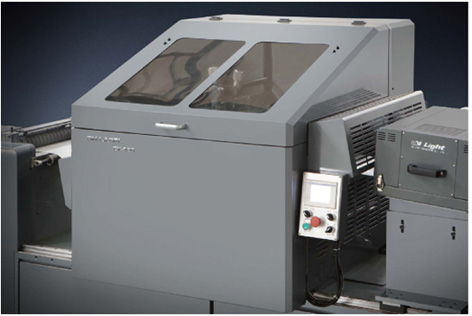

Rotary die cutting station: one big magnetic cylinder used in this machine largely saves the tooling cost.Different die-cutting job can be achieved by changing the flexible die.	Flexo UV varnishing unit with chamber system: flexo UV varnishing unit(both solid and spot) makes the printing more shining and attractive.
Delam/relam unit: delaminate the adhesive label then printing on glue surface and re-laminating.
